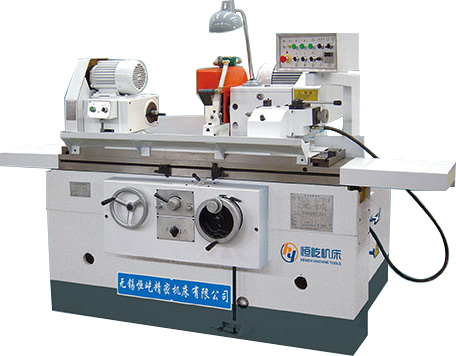

機床的主要特點 Main Characteristics
? 機床機構靈巧、精度穩定、磨削效率高。工件、砂輪。油泵和冷卻泵分別以單獨電機帶動。
? 配置了液壓驅動和電氣控制操作方便。具有精巧簡廉特點，適宜于成批及大量生產車間，磨削圓柱形或圓錐形外圓工件。
? 本機床是在M1320的基礎上對其主要液壓部件有壓筒，快速進退油缸、操縱箱、壓力閥板、油泵等作了重新設計。
? 工作臺面回轉角度從順時針3°，逆時針6°增大為順時針 5°，逆時針9°。機床的外形方面也做了較大的改進。
? M1420是在M1320機床基礎上增加內圓砂輪軸改型而來，可以磨削一般軸、套類零件的內孔。
? With flexible structure, stable accuracy & high grindind effciency.Workpiece, wheel, oil-pump,and coolant pump are respectively driven by their individual motors.
? It has hydraulic drive, electric control for convenient operation. It is suitable for batch and mass production for grinding cylindrical or conical workpieces.
? It is designed on the base of M1320, especially inmroved for its hydraulic cylindeers, rapid advance & withdrawal cylinder control box, presure-valve board and oil pump.
? The swing angle of worktable is increased from C.W.3° and C.C.W. 6° to C.W.5° and C.C.W.9°. The overall appearance of the machine is also improved.
? In model M1420. grinding wheel spindle can be specially used to grind inner bore of shaft and ring type workparts.
主要技術參數 Main Technical Specifcations
| 機床型號 |
M1320 |
| 磨削直徑范圍 Diameter to be ground (mm) |
ф8~ф200 |
| 磨削長度 Max. length to be ground (mm) |
520/750/1000 |
| 工件重量 Max.swivelling workpiece weight (kg) |
50 |
| 工作臺回轉角度 Max. angle of swivel (°) |
5°~+9° / -3°~+9° / -3°~7° |
| 工作臺液壓移動速度 Hydeaulic moving speed of table (m/min) |
0.1~4 |
| 頭架主軸轉速 Headstock speed (r/min) |
60, 85, 120,170,230,460 |
| 頭尾架錐度 Taper of headstock & tailstock tapered hole |
No.3 |
| 頭架卡盤直徑 Dia. of haedstock chuck (mm) |
ф125 |
| 尾架套筒移動量 Stroke of tailstock sleeve (mm) |
25 |
| 砂輪架移動量 Traverse of wheelhead spindle (mm) |
150 |
| 砂輪軸轉速 Speed of gri wheel spindle (r/min) |
2230 / 1820 |
| 砂輪規格 Spec of grinding wheel (mm) |
ф400×(40~50)×ф203
or ф300×(25~40)×ф127 |
| 機床總功率 Machine total power (kw) |
4.24 |
| 機床外形尺寸 Overall dimension (mm) |
2000 × 1420 × 1600/
2700 × 1420 × 1600/
3100 × 1420 × 1600 |
| 機床重量 Weight of machine (kg) |
2500/2900/3000 |
機床工作精度 Grinding Accuracies
| 機床型號 |
M1320 |
M1420 |
| 圓度 roundness (mm) |
0.0015 |
0.0015 |
| 圓柱度 Cylindricity (mm) |
0.005 |
0.005 |
| 粗糙度 Roughness (μm) |
Ra0.4 |
Ra0.4 |
| 內孔圓度 Bore roundness (mm) |
- |
0.003 |
| 內孔圓柱度 Cylindricity of bore (mm) |
- |
0.004 |
| 內孔粗糙度 Roughness of bore (μm) |
- |
Ra0.63 |
|
