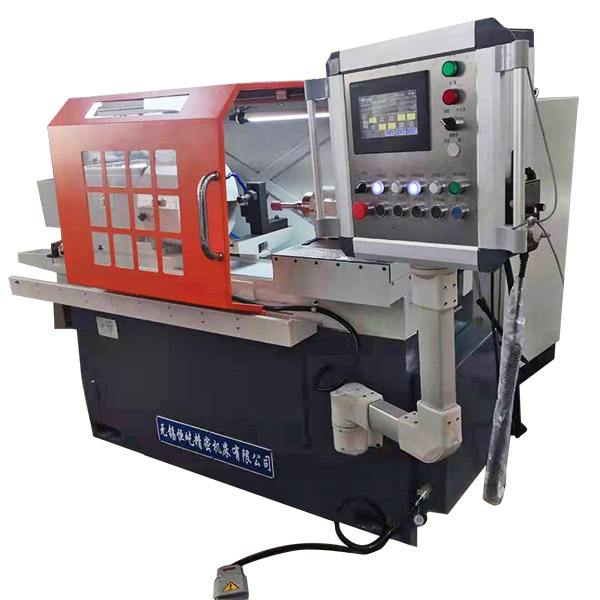

首頁 > 產品展示| MBK2110D 數控內圓磨床 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 機床的主要特點 Main Characteristics ?機床為不帶全封閉罩的二軸數控內圓磨床。
?機床（床身及工作臺）導軌采用平-V型導軌，剛性強，滑動性能好。
?機床進給機構導軌采用十字交叉滾動導軌，具有剛性強，滑動阻力小等特點。
?機床進給機構傳動采用伺服電機控制滾珠絲桿進行進給及自動修整補償。
?電氣控制系統采用進口原器件。機床磨削參數可通過觸摸屏輸入輸出，操作簡單方便。電氣箱置床身上。
?機床伺服系統控制的進給具有精度高、誤差小、速度快的特點。
?機床夾具可有用戶作多種選擇。由三爪卡盤、液壓動力卡盤及液 壓薄膜模式夾緊夾具。
?機床砂輪主軸也有兩種形式可選擇：一種是機械式砂輪軸，另一種是電動砂輪軸。電動砂輪軸由靜止式變頻器作無級調速。
?The machine tool is a two-axis CNC internal grinding machine without a fully enclosed cover.
?The machine bed and work platform rails adopt flat-V guide rails, which have strong rigidity and good sliding performance.
?Crossing rolling guide way is used for feed mechanism,featuring good rigidity and small sliding friction.
?The feeding of feed mechanism and auto wheel dressing comp can be performed by driving the servo motor through ball lead screw.
?Electrical control system adopts imported components.Grinding parameters can be entered through the touch-screen, and operation is simple and convenient
?The serro system can be used to control the feeding amount, thus featuring high accuracy, small error and fast speed.
?Machine feed with high accuracy, small error & fast speed. Three-pawl chuck and hydraulic power chuck as well as hydraulic disphragm fixture are used.
?There are two kings of wheel spindle,one is mechanical wheel spindle and the other is electric speed-regulation for electric spindle can be carried out by freq inverter.
主要技術參數 Main Technical Specifcations
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
